Abstracts range filter function. More...

#include <filters.h>

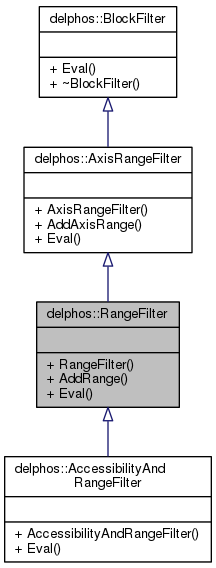

Inheritance diagram for delphos::RangeFilter:

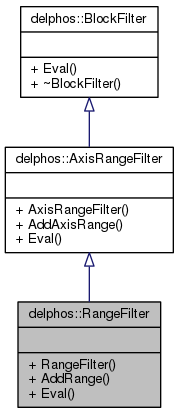

Collaboration diagram for delphos::RangeFilter:

Public Member Functions
	RangeFilter (const string &attr_name, const float &min_value, const float &max_value, const bool &strictlb=true)
	defines a range filter for a given attribute name, a range defined by a given min value and a given max value. More...

void	AddRange (const string &attr_name, const float &min_value, const float &max_value, const bool &strictlb=true)
	adds a range filter for a given attribute name, a range defined by a given min value and a given max value. More...

virtual bool	Eval (const delphos::Block &block) const
	Method that determine how the blocks are filtered. More...

Public Member Functions inherited from delphos::AxisRangeFilter
	AxisRangeFilter (const char &axis, const float &min_value, const float &max_value, const bool &strictlb=true)
	defines an axis range filter for a given axis, a range defined by a given min value and given max value. More...

void	AddAxisRange (const char &axis, const float &min_value, const float &max_value, const bool &strictlb=true)
	add an axis range filter for a given axis, a range defined by a given min value and a given max value. More...

Public Member Functions inherited from delphos::BlockFilter
virtual	~BlockFilter ()
	Destroys a block filter.

Detailed Description

Abstracts range filter function.

Constructor & Destructor Documentation

delphos::RangeFilter::RangeFilter	(	const string &	attr_name,
		const float &	min_value,
		const float &	max_value,
		const bool &	strictlb = `true`
	)

defines a range filter for a given attribute name, a range defined by a given min value and a given max value.

Parameters

attr_name	An attribute name.
min_value	A minimum value for the axis.
max_value	A maximum value for the axis.
strictlb	A boolean that is equal to true when the minimum value for the axis is rejected.

void delphos::RangeFilter::AddRange	(	const string &	attr_name,
		const float &	min_value,
		const float &	max_value,
		const bool &	strictlb = `true`
	)

adds a range filter for a given attribute name, a range defined by a given min value and a given max value.

Parameters

attr_name	An attribute name.
min_value	A minimum value for the axis.
max_value	A maximum value for the axis.
strictlb	A boolean that is equal to true when the minimum value for the axis is rejected.

bool delphos::RangeFilter::Eval ( const delphos::Block & block ) const

virtual

Method that determine how the blocks are filtered.

The method return true if the block is kept, false if it is not.

The documentation for this class was generated from the following files:

/home/gmorales/dev/MineLink/BlockScheduling/core/trunk/utils/filters/filters.h
/home/gmorales/dev/MineLink/BlockScheduling/core/trunk/utils/filters/filters.cpp
