delphos::Block Class Reference

A utility class to access blocks individually. More...

#include <blockmodel.h>

Inheritance diagram for delphos::Block:

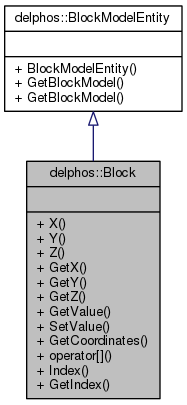

Collaboration diagram for delphos::Block:

Public Member Functions
double	X () const
	Retrieves the \(x\) coordinate of the block. More...
double	Y () const
	Retrieves the \(y\) coordinate of the block. More...
double	Z () const
	Retrieves the \(z\) coordinate of the block. More...
double	GetX () const
	Retrieves the \(x\) coordinate of the block. More...
double	GetY () const
	Retrieves the \(y\) coordinate of the block. More...
double	GetZ () const
	Retrieves the \(z\) coordinate of the block. More...
double	GetValue (const string &column) const
	Retrieves the value of an attribute of the block. More...
void	SetValue (const string &column, const double &value)
	Sets the value of an attribute of the block. More...
delphos::Coordinates	GetCoordinates () const
	Retrieves the coordinates of the block. More...
double	operator[] (const string &column) const
	Retrieves the value of an attribute of the block. More...
delphos::BlockIndexType	Index () const
	Retrieves the index (position) of the block in the BlockModel. More...
delphos::BlockIndexType	GetIndex () const
	Retrieves the index (position) of the block in the block model. More...
Public Member Functions inherited from delphos::BlockModelEntity
	BlockModelEntity (delphos::BlockModel &bm)
	Creates a new block instance associated to a given block model. More...
delphos::BlockModel &	GetBlockModel ()
	Retrieves the block model to which the entity is associated. More...
const delphos::BlockModel &	GetBlockModel () const
	Retrieves the block model to which the entity is associated. More...

Friends
class	BlockModel

Detailed Description

A utility class to access blocks individually.

This class allows to treat blocks individually, useful for syntax simplicity.

Member Function Documentation

Coordinates delphos::Block::GetCoordinates

(

)

const

Retrieves the coordinates of the block.

Returns

A Coordinates instance containing the spatial coordinates values of the block.

BlockIndexType delphos::Block::GetIndex

(

)

const

Retrieves the index (position) of the block in the block model.

Returns

The index (position) of the block in the BlockModel (from 0 to Size()-1).

double delphos::Block::GetValue

(

const string &

column

)

const

Retrieves the value of an attribute of the block.

Parameters

column

The name of the attribute to be retrieved.

Returns

The value of the given attribute for the block.

If the aatribute column is not found, an exception is thrown.

double delphos::Block::GetX

(

)

const

Retrieves the \(x\) coordinate of the block.

Returns

The \(x\) spatial coordinate value of the block.

double delphos::Block::GetY

(

)

const

Retrieves the \(y\) coordinate of the block.

Returns

The \(y\) spatial coordinate value of the block.

double delphos::Block::GetZ

(

)

const

Retrieves the \(z\) coordinate of the block.

Returns

The \(z\) spatial coordinate value of the block.

BlockIndexType delphos::Block::Index

(

)

const

Retrieves the index (position) of the block in the BlockModel.

Deprecated:

See Block::GetIndex()

Returns

The index (position) of the block in the BlockModel (from 0 to Size()-1).

double delphos::Block::operator[]

(

const string &

column

)

const

Retrieves the value of an attribute of the block.

Parameters

column

The name of the attribute to be retrieved.

Returns

The value of the given attribute for the block.

This is a shortcut for Block::GetValue(const string & column)

void delphos::Block::SetValue	(	const string &	column,
		const double &	value
	)

Sets the value of an attribute of the block.

Parameters

column	The name of the attribute to be set.
value	The new value for the attribute.

If the attribute column is not found, an exception is thrown.

double delphos::Block::X

(

)

const

Retrieves the \(x\) coordinate of the block.

Deprecated:

See Block::GetX()

Returns

The \(x\) spatial coordinate value of the block.

double delphos::Block::Y

(

)

const

Retrieves the \(y\) coordinate of the block.

Deprecated:

See Block::GetY()

Returns

The \(y\) spatial coordinate value of the block.

double delphos::Block::Z

(

)

const

Retrieves the \(z\) coordinate of the block.

Deprecated:

See Block::GetZ()

Returns

The \(z\) spatial coordinate value of the block.

---

The documentation for this class was generated from the following files:

• /home/gmorales/dev/MineLink/BlockScheduling/core/trunk/data_structures/bm/blockmodel.h
• /home/gmorales/dev/MineLink/BlockScheduling/core/trunk/data_structures/bm/blockmodel.cpp
