A constraint on the average values of attributes of blocks. More...

#include <constraint.h>

Inheritance diagram for delphos::AttributeAvgConstraint:

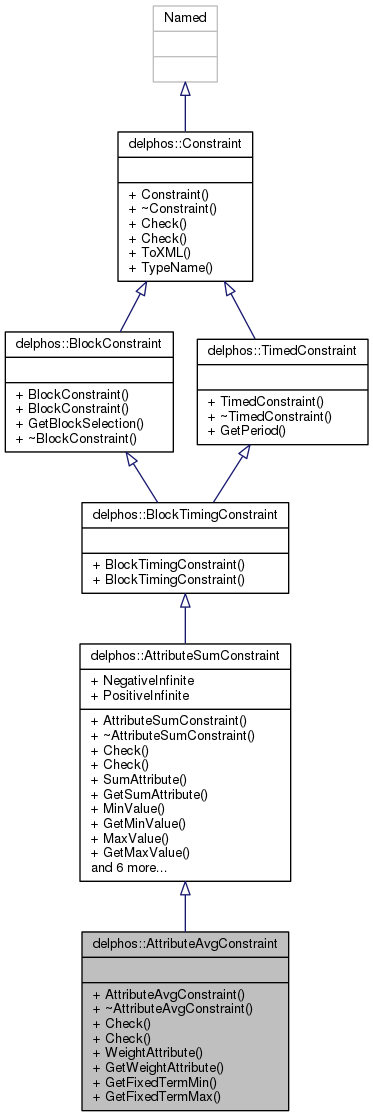

Collaboration diagram for delphos::AttributeAvgConstraint:

Public Member Functions
	AttributeAvgConstraint (const string &name, const unsigned int &period, const string &sum_attr, const string &weight_attr, const vector< string > &destinations, const double min_value=NegativeInfinite, const double max_value=PositiveInfinite, delphos::BlockSelection *bs=NULL, const double term_min=0.0, const double term_max=0.0)

virtual	~AttributeAvgConstraint ()
	Destroys the attribute average constraint.

virtual bool	Check (const delphos::Schedule &sch) const
	Checks if the constraint is satisfied by the schedule. More...

virtual bool	Check (const delphos::FractionalSchedule &sch) const
	Checks if the given fractional schedule satisfies the constraint. More...

const string	WeightAttribute () const
	The attribute to be used as weight for the average of the attribute. The attribute to be used as weight for the average of the attribute. Deprecated.

const string	GetWeightAttribute () const
	The attribute to be used as weight for the average of the attribute. The attribute to be used as weight for the average of the attribute.

const double	GetFixedTermMin () const
	Returns the fixed term on minimum bound.

const double	GetFixedTermMax () const
	Returns the fixed term on the maximum bound.

Public Member Functions inherited from delphos::AttributeSumConstraint
	AttributeSumConstraint (const string &name, const unsigned int &period, const string &attribute, const vector< string > &destinations, const double min_value=NegativeInfinite, const double max_value=PositiveInfinite, delphos::BlockSelection *bs=NULL)
	Creates a new sum constraint. More...

const string	SumAttribute () const
	Returns the attribute to be added up and limited. More...

const string	GetSumAttribute () const
	Returns the attribute to be added up and limited. More...

const double	MinValue () const
	Returns the lower limit set by the constraint. Return the lower limit set by the constraint.

const double	GetMinValue () const
	Returns the lower limit set by the constraint. Return the lower limit set by the constraint.

const double	MaxValue () const
	Returns the upper limit set by the constraint. Return the upper limit set by the constraint.

const double	GetMaxValue () const
	Returns the upper limit set by the constraint. Return the upper limit set by the constraint.

const bool	IsLowerBounded () const
	Checks if the lower limit applies or not. More...

const bool	IsUpperBounded () const
	Checks if the upper bound limit applies or not. More...

const unsigned int	NumAffectedDestinations () const
	Returns the number of destinations affected by the constraint. More...

const unsigned int	GetNumAffectedDestinations () const
	Returns the number of destinations affected by the constraint. More...

string	GetAffectedDestination (const unsigned int &i) const
	Returns the name of the i-th destinations affected by the constraint. More...

const vector< string > &	GetAffectedDestinations () const
	Returns the affected destinations.

Public Member Functions inherited from delphos::BlockTimingConstraint
	BlockTimingConstraint (const string &name, const unsigned int &period, delphos::BlockModel &bm)
	Creates a constraint limiting the period . More...

	BlockTimingConstraint (const string &name, const unsigned int &period, delphos::BlockSelection *bs)
	Creates a constraint limiting the period . More...

Public Member Functions inherited from delphos::BlockConstraint
	BlockConstraint (const string &name, delphos::BlockModel &bm)
	Creates a new block selection constraint. More...

	BlockConstraint (const string &name, delphos::BlockSelection *bs)
	Creates a new block selection constraint. More...

delphos::BlockSelection *	GetBlockSelection () const
	Returns the selection of blocks being constrained.

virtual	~BlockConstraint ()
	Destroys a block constraint.

Public Member Functions inherited from delphos::Constraint
	Constraint (const string &name)
	Creates a constraint with given name. More...

virtual	~Constraint ()
	Destructor. More...

virtual string	ToXML (const unsigned int identation_level=0) const
	A XML string describing the constraint. More...

const char *	TypeName () const
	a char string used a identifier in the XML representation of the constraint.

Public Member Functions inherited from delphos::TimedConstraint
	TimedConstraint (const string &name, const unsigned int &period)
	Creates a new timed constraint. More...

virtual	~TimedConstraint ()
	destroys a timed constraint.

const unsigned int	GetPeriod () const
	Returns the time-period that the constraint applies at. More...

Additional Inherited Members
Static Public Attributes inherited from delphos::AttributeSumConstraint
static const double	NegativeInfinite = -INFINI
	Useful constant for 'negative infinite'. More...

static const double	PositiveInfinite = +INFINI
	Useful constant for 'positive infinite'. More...

Detailed Description

A constraint on the average values of attributes of blocks.

This constraints allows to limit the average value of blocks sent to a set of destinations at a given time-period.

In this constraint, a certain "sum_attribute" is averaged (weighted by a "weight_attribute") over the blocks sent to a set of destinations at a given time-period. The constraint is satisfied only if this average is within given limits.

Constructor & Destructor Documentation

delphos::AttributeAvgConstraint::AttributeAvgConstraint	(	const string &	name,
		const unsigned int &	period,
		const string &	sum_attr,
		const string &	weight_attr,
		const vector< string > &	destinations,
		const double	min_value = `NegativeInfinite`,
		const double	max_value = `PositiveInfinite`,
		delphos::BlockSelection *	bs = `NULL`,
		const double	term_min = `0.0`,
		const double	term_max = `0.0`
	)

Creates a new average limit constraint.

Parameters

name	A name for the constraint.
period	The period at which the constraint applies.
sum_attr	The attribute to be averaged.
weight_attr	The attribute to be used as weight in the average.
destinations	The destinations affected by the constraint.
min_value	The minimum average value for the sum_attribute.
max_value	The maximum average value for the sum attribute.
bs	The given block selection to be constrained.

Member Function Documentation

bool delphos::AttributeAvgConstraint::Check ( const delphos::Schedule & sch ) const

virtual

Checks if the constraint is satisfied by the schedule.

Parameters

sch	The schedule to be checked.

Checks if the constraint is satisfied by the schedule.

Reimplemented from delphos::AttributeSumConstraint.

bool delphos::AttributeAvgConstraint::Check ( const delphos::FractionalSchedule & sch ) const

virtual

Checks if the given fractional schedule satisfies the constraint.

Parameters

fsch	The fractional schedule to be checked.

This method checks if the given schedule satisfies the constraint (returning true) or not (return false).

Reimplemented from delphos::AttributeSumConstraint.

The documentation for this class was generated from the following files:

/home/gmorales/dev/MineLink/BlockScheduling/core/trunk/problems/scheduling/constraint.h
/home/gmorales/dev/MineLink/BlockScheduling/core/trunk/problems/scheduling/constraint.cpp
