Defines a fractional scheduling of blocks. More...

#include <fractional_schedule.h>

Inheritance diagram for delphos::FractionalSchedule:

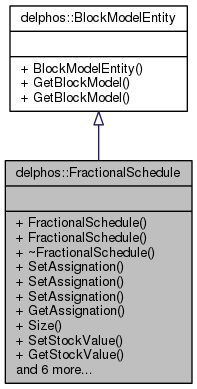

Collaboration diagram for delphos::FractionalSchedule:

Public Member Functions
	FractionalSchedule (SchedulingInstance &si)
	Create a new Schedule. More...

	FractionalSchedule (const FractionalSchedule &other)
	copy constructor More...

virtual	~FractionalSchedule ()
	Destructor.

void	SetAssignation (const delphos::BlockIndexType &index, const unsigned int &period, const unsigned int &destination, const double &val)
	Assigns period / destination to a block defined by its coordinates. More...

void	SetAssignation (const delphos::Coordinates &c, const unsigned int &period, const unsigned int &destination, const double &val)
	Assigns period / destination to a block defined by its coordinates. More...

void	SetAssignation (const double &x, const double &y, const double &z, const unsigned int &period, const unsigned int &destination, const double &val)
	Assigns period / destination to a block defined by its coordinates. More...

void	GetAssignation (const unsigned long &pos, delphos::BlockIndexType &index, unsigned int &period, unsigned int &destination, double &val) const
	Return the assignment of given position. More...

const unsigned long	Size () const
	Return the number of assigments.

void	SetStockValue (const delphos::BlockIndexType &index, const double &value) const
	Assigns a stock value to the block of given index. More...

double const	GetStockValue (const delphos::BlockIndexType &index) const
	return the stock value of the block of given index. More...

const unsigned int	StockVarListSize () const
	return the size of the stock variable list .

delphos::SchedulingInstance &	GetInstance () const
	return the scheduling instance.

bool	FractionalScheduleToTextFile (const char *schedule_file) const
	store the fractional blocks schedule in the given text file. More...

bool	StocksToTextFile (const char *stocks_file) const
	store the stocks schedule in the given text file. More...

bool	Check () const
	Check if the fractional schedule satisfy the constaints of the scheduling instance.

delphos::BlockSelection *	GetBlocksWithoutSuccessor ()
	Returns the blocks present in the schedule that don't have successors.

Public Member Functions inherited from delphos::BlockModelEntity
	BlockModelEntity (delphos::BlockModel &bm)
	Creates a new block instance associated to a given block model. More...

delphos::BlockModel &	GetBlockModel ()
	Retrieves the block model to which the entity is associated. More...

const delphos::BlockModel &	GetBlockModel () const
	Retrieves the block model to which the entity is associated. More...

Detailed Description

Defines a fractional scheduling of blocks.

This class defines a fractional scheduling of blocks, that is, a list of assignment of a time period and a destination for each parts of blocks.

Constructor & Destructor Documentation

delphos::FractionalSchedule::FractionalSchedule ( SchedulingInstance & si )

Create a new Schedule.

Parameters

si	The scheduling instance the schedule refers to.

delphos::FractionalSchedule::FractionalSchedule ( const FractionalSchedule & other )

copy constructor

Parameters

other The fractional schedule to be copied.

Member Function Documentation

bool delphos::FractionalSchedule::FractionalScheduleToTextFile ( const char * schedule_file ) const

store the fractional blocks schedule in the given text file.

Parameters

schedule_file the name of the text file in which the fractional schedule is stored. It only concern blocks.

void delphos::FractionalSchedule::GetAssignation	(	const unsigned long &	pos,
		delphos::BlockIndexType &	index,
		unsigned int &	period,
		unsigned int &	destination,
		double &	val
	)		const

Return the assignment of given position.

Parameters

	pos	The position of the assignment being returned.
[out]	index	The index of the block of the pos th assignment.
[out]	period	The period of pos th assignment.
[out]	destination	The destination of the pos th assignment.
[out]	val	The part of the block of the pos th assignment.

const double delphos::FractionalSchedule::GetStockValue ( const delphos::BlockIndexType & index ) const

return the stock value of the block of given index.

Parameters

index the index (position) of the block, from 0 to Size()-1.

void delphos::FractionalSchedule::SetAssignation	(	const delphos::BlockIndexType &	index,
		const unsigned int &	period,
		const unsigned int &	destination,
		const double &	val
	)

Assigns period / destination to a block defined by its coordinates.

Parameters

index	The index of the block.
period	The period being assigned to the part of the block.
destination	The destination being assigned to the part of the block.
val	The part of the block assigned to the destination.

void delphos::FractionalSchedule::SetAssignation	(	const delphos::Coordinates &	c,
		const unsigned int &	period,
		const unsigned int &	destination,
		const double &	val
	)

Assigns period / destination to a block defined by its coordinates.

Parameters

c	The coordinates of the block.
period	The period being assigned to the part of the block.
destination	The destination being assigned to the part of the block.
val	The part of the block assigned to the destination.

void delphos::FractionalSchedule::SetAssignation	(	const double &	x,
		const double &	y,
		const double &	z,
		const unsigned int &	period,
		const unsigned int &	destination,
		const double &	val
	)

Assigns period / destination to a block defined by its coordinates.

Parameters

x	the X coordinate of the block.
y	the Y coordinate of the block.
z	the Z coordinate of the block.
period	The period being assigned to the part of the block.
destination	The destination being assigned to the part of the block.
val	The part of the block assigned to the destination.

void delphos::FractionalSchedule::SetStockValue	(	const delphos::BlockIndexType &	index,
		const double &	value
	)		const

Assigns a stock value to the block of given index.

Parameters

index	the index (position) of the block, from 0 to Size()-1.
value	the value of stock to be assigned.

bool delphos::FractionalSchedule::StocksToTextFile ( const char * stocks_file ) const

store the stocks schedule in the given text file.

Parameters

stocks_file the name of the text file in which the stock schedule is stored. It only concern stocks.

The documentation for this class was generated from the following files:

/home/gmorales/dev/MineLink/BlockScheduling/core/trunk/solvers/scheduling/fractional_scheduler/fractional_schedule.h
/home/gmorales/dev/MineLink/BlockScheduling/core/trunk/solvers/scheduling/fractional_scheduler/fractional_schedule.cpp
