delphos::FractionalScheduler Class Reference

Dummy class that define required methods for a solver of a scheduling instance. More...

#include <fractional_scheduler.h>

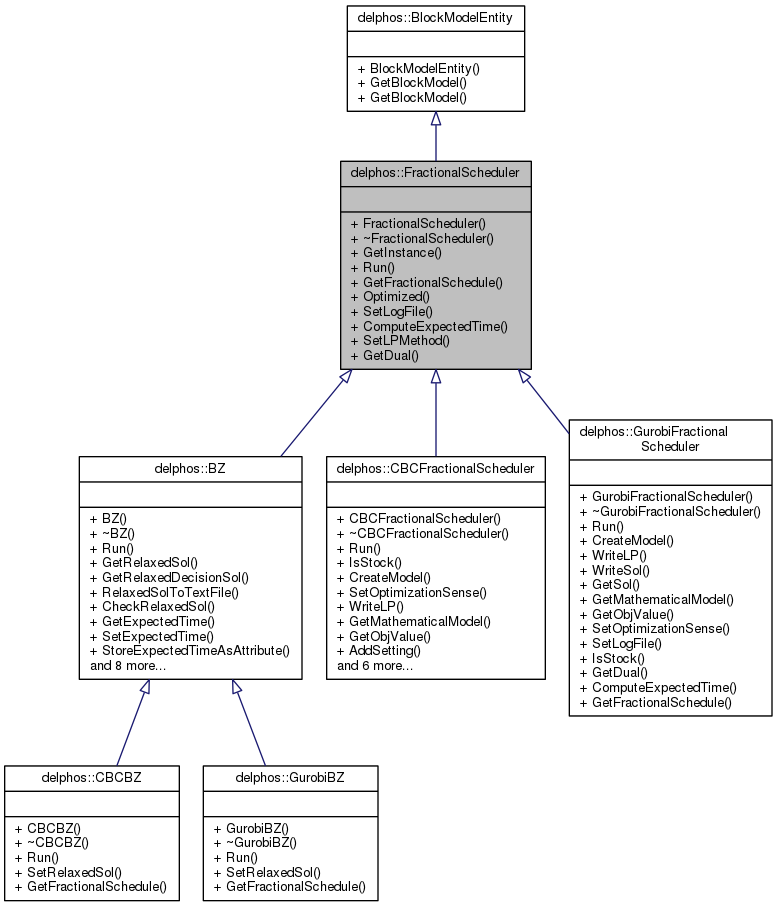

Inheritance diagram for delphos::FractionalScheduler:

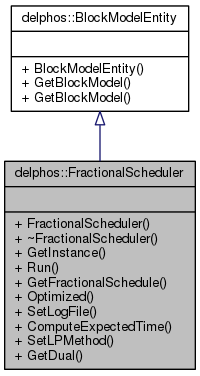

Collaboration diagram for delphos::FractionalScheduler:

Public Member Functions
	FractionalScheduler (delphos::SchedulingInstance &si)
	Creates a new scheduler. More...
virtual	~FractionalScheduler ()
	The destructor.
delphos::SchedulingInstance &	GetInstance ()
	Returns the associated scheduling instance.
virtual bool	Run ()
	Solves the scheduling instance. Returns true on success. More...
virtual const delphos::FractionalSchedule &	GetFractionalSchedule ()
	Returns a fractional schedule.
virtual const bool	Optimized ()
	Returns true only if the scheduler has run succesfully.
virtual void	SetLogFile (const string &name)
	Set the use of the log with given file name. More...
virtual void	ComputeExpectedTime (const string column)
	Compute the expected schedule time for each block. This implementation is a dummy version that do nothing.
void	SetLPMethod (const int &lpcode)
	Set LP method. More...
virtual const double	GetDual (const string &cname)
	Return the dual value of given constraint. More...
Public Member Functions inherited from delphos::BlockModelEntity
	BlockModelEntity (delphos::BlockModel &bm)
	Creates a new block instance associated to a given block model. More...
delphos::BlockModel &	GetBlockModel ()
	Retrieves the block model to which the entity is associated. More...
const delphos::BlockModel &	GetBlockModel () const
	Retrieves the block model to which the entity is associated. More...

Detailed Description

Dummy class that define required methods for a solver of a scheduling instance.

This class defines the required methods to be implemented by a class that is able to solve a scheduling instance.

Constructor & Destructor Documentation

delphos::FractionalScheduler::FractionalScheduler

(

delphos::SchedulingInstance &

si

)

Creates a new scheduler.

Parameters

si	The scheduling instance to be solved.

Member Function Documentation

const double delphos::FractionalScheduler::GetDual ( const string &  cname )

virtual

Return the dual value of given constraint.

Parameters

cname

The name of the constraint of which the dual value is returned. This implementation is a dummy version that always returns 0.

Reimplemented in delphos::GurobiFractionalScheduler, and delphos::CBCFractionalScheduler.

bool delphos::FractionalScheduler::Run ( )

virtual

Solves the scheduling instance. Returns true on success.

In this class, it is simply a dummy method that returns always false.

Reimplemented in delphos::BZ, delphos::CBCFractionalScheduler, delphos::GurobiFractionalScheduler, delphos::GurobiBZ, and delphos::CBCBZ.

void delphos::FractionalScheduler::SetLogFile ( const string &  name )

virtual

Set the use of the log with given file name.

Parameters

name	The name of the log file. This implementation is a dummy version that do nothing.

Reimplemented in delphos::CBCFractionalScheduler, delphos::BZ, and delphos::GurobiFractionalScheduler.

void delphos::FractionalScheduler::SetLPMethod

(

const int &

lpcode

)

Set LP method.

Parameters

lpcode

The code of lp method(simplex,dual simplex,barrier,...)

---

The documentation for this class was generated from the following files:

• /home/gmorales/dev/MineLink/BlockScheduling/core/trunk/solvers/scheduling/fractional_scheduler/fractional_scheduler.h
• /home/gmorales/dev/MineLink/BlockScheduling/core/trunk/solvers/scheduling/fractional_scheduler/fractional_scheduler.cpp
