Class that defines sliding time window heuristic that solve a scheduling instance. More...

#include <swheuristics.h>

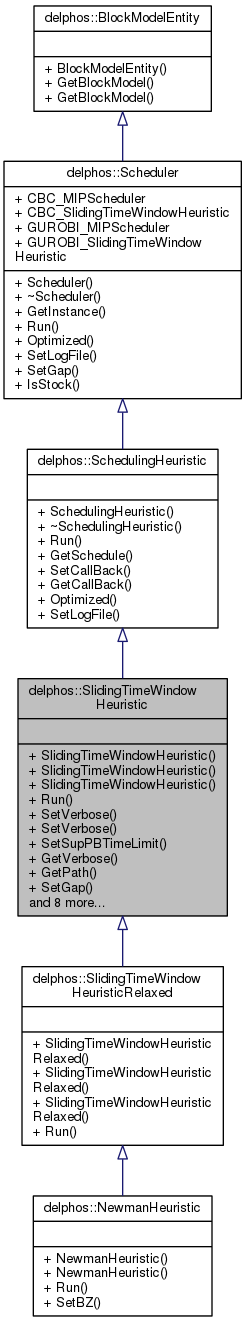

Inheritance diagram for delphos::SlidingTimeWindowHeuristic:

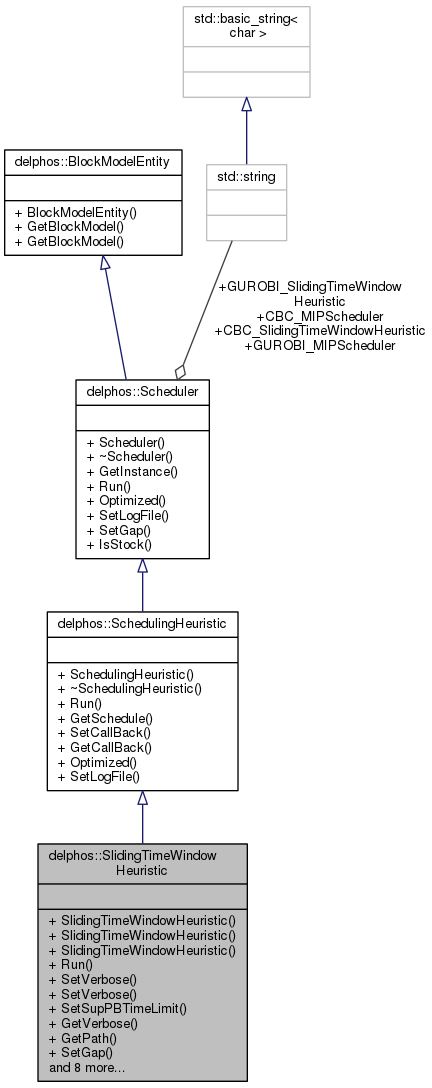

Collaboration diagram for delphos::SlidingTimeWindowHeuristic:

Public Member Functions
	SlidingTimeWindowHeuristic (delphos::SchedulingInstance &si, const unsigned int &window_size, const unsigned int &sub_window_size, const unsigned int &step, const string &sched_name=Scheduler::GUROBI_MIPScheduler)
	Creates a sliding time window heuristic with given scheduling instance and parameters. More...

	SlidingTimeWindowHeuristic (SchedulingInstance &si, const unsigned int &window_size, const unsigned int &sub_window_size, const string &sched_name=Scheduler::GUROBI_MIPScheduler)
	Creates a sliding time window heuristic with given scheduling instance and parameters. More...

	SlidingTimeWindowHeuristic (delphos::SchedulingInstance &si, const unsigned int &window_size, const string &sched_name=Scheduler::GUROBI_MIPScheduler)
	Creates a sliding time window heuristic with given scheduling instance and parameters. More...

virtual bool	Run ()
	Runs the heuristic.

void	SetVerbose ()
	Set the verbose mode on.

void	SetVerbose (const string &path)
	Set the verbose mode on and set the path of the log file. More...

void	SetSupPBTimeLimit (const double &tlimit)
	Set the sub problem time limit. More...

const bool	GetVerbose () const
	Returns the verbose status. Can be true or false.

const string	GetPath () const
	Returns the path of the log file.

void	SetGap (const float &gap)
	Set the gap of the sub-problems. More...

const float	GetGap () const
	Returns the desired relative integer gap of the sub problems.

void	SetEmphasis (const Model::Emphasis &emphasis)
	Set the emphasis mode for each resolution of sub-problem. More...

const Model::Emphasis	GetEmphasis () const
	Returns the emphasis mode for each resolution of sub-problem.

void	SetSense (const Model::OptimizationSense &sense)
	Set the sense of the optimization model. More...

const Model::OptimizationSense	GetSense () const
	Returns the sense of optimization.

const string &	GetLogFileName () const
	Returns the log file name.

void	SetNumThread (const unsigned int &nthread)
	Set the number of threads used for the optimization of each sub problem.

void	SetNoOutput ()
	Set No Output.

Public Member Functions inherited from delphos::SchedulingHeuristic
	SchedulingHeuristic (SchedulingInstance &si)
	Creates a heuristic with given scheduling instance. More...

virtual	~SchedulingHeuristic ()
	The destructor.

const Schedule &	GetSchedule ()
	Returns the result schedule.

void	SetCallBack (delphos::CallBackPtr fp)
	Set a time advance user callback. More...

delphos::CallBackPtr	GetCallBack ()
	Returns the call back if it exists.

const bool	Optimized ()
	Returns true only if the MIP have been succesfully optimized.

void	SetLogFile (const string &name)
	Set the use of the log with given file name. More...

Public Member Functions inherited from delphos::Scheduler
	Scheduler (delphos::SchedulingInstance &si)
	Creates a new scheduler. More...

virtual	~Scheduler ()
	The destructor.

delphos::SchedulingInstance &	GetInstance ()
	Returns the associated scheduling instance.

const bool	IsStock ()
	Returns true only if the inner scheduling instance has stoks.

Public Member Functions inherited from delphos::BlockModelEntity
	BlockModelEntity (delphos::BlockModel &bm)
	Creates a new block instance associated to a given block model. More...

delphos::BlockModel &	GetBlockModel ()
	Retrieves the block model to which the entity is associated. More...

const delphos::BlockModel &	GetBlockModel () const
	Retrieves the block model to which the entity is associated. More...

Additional Inherited Members
Static Public Attributes inherited from delphos::Scheduler
static const string	CBC_MIPScheduler =string("CBC_MIPScheduler")
	Name of the CBC MIP scheduler.

static const string	CBC_SlidingTimeWindowHeuristic =string("CBC_SlidingTimeWindowHeuristic")
	Name of the CBC implemtation of the sliding time window heuristic.

static const string	GUROBI_MIPScheduler =string("GUROBI_MIPScheduler")
	Name of the gurobi MIP scheduler.

static const string	GUROBI_SlidingTimeWindowHeuristic =string("GUROBI_SlidingTimeWindowHeuristic")
	Name of the gurobi implemtation of the sliding time window heuristic.

Detailed Description

Class that defines sliding time window heuristic that solve a scheduling instance.

This is a rolling time heuristic.

Constructor & Destructor Documentation

delphos::SlidingTimeWindowHeuristic::SlidingTimeWindowHeuristic	(	delphos::SchedulingInstance &	si,
		const unsigned int &	window_size,
		const unsigned int &	sub_window_size,
		const unsigned int &	step,
		const string &	sched_name = `Scheduler::GUROBI_MIPScheduler`
	)

Creates a sliding time window heuristic with given scheduling instance and parameters.

Parameters

si	The scheduling instance of the heuristics.
window_size	The window size of the heuristic.
sub_window_size	The sub window size of the heuristic.
step	The step of the heuristic.
sched_name	The scheduler name that will be used to solve the sub-problems. At the first iteration a sub problem that corresponds to the periods included in the window_size first periods is solved. The solution part for the first sub_window_size periods is fixed. Then, rolling step periods, the process is repeated still reaching the horizon. So horizon>=window_size>=sub_window_size>1. If Gurobi is available, it is used as default solver. On the other hand, coin CBC is used. This implementation of the heuristic is not working for a model that got multi fractional destination variables.

delphos::SlidingTimeWindowHeuristic::SlidingTimeWindowHeuristic	(	SchedulingInstance &	si,
		const unsigned int &	window_size,
		const unsigned int &	sub_window_size,
		const string &	sched_name = `Scheduler::GUROBI_MIPScheduler`
	)

Creates a sliding time window heuristic with given scheduling instance and parameters.

Parameters

si	The scheduling instance of the heuristics.
window_size	The window size of the heuristic.
sub_window_size	The sub window size of the heuristic.
sched_name	The scheduler name that will be used to solve the sub-problems. At the first iteration a sub problem that corresponds to the periods included in the window_size first periods is solved. The solution part for the first sub_window_size periods is fixed. Then, rolling 1 period, the process is repeated still reaching the horizon. So horizon>=window_size>=sub_window_size>1. If Gurobi is available, it is used as default solver. On the other hand, coin CBC is used.

delphos::SlidingTimeWindowHeuristic::SlidingTimeWindowHeuristic	(	delphos::SchedulingInstance &	si,
		const unsigned int &	window_size,
		const string &	sched_name = `Scheduler::GUROBI_MIPScheduler`
	)

Creates a sliding time window heuristic with given scheduling instance and parameters.

Parameters

si	The scheduling instance of the heuristics.
window_size	The window size of the heuristic.
sub_window_size	The sub window size of the heuristic.
sched_name	The scheduler name that will be used to solve the sub-problems. At the first iteration a sub problem that corresponds to the periods included in the window_size first periods is solved. The solution part for the first period is fixed. Then, rolling 1 period, the process is repeated still reaching the horizon. So horizon>=window_size. If Gurobi is available, it is used as default solver. On the other hand, coin CBC is used as default solver. The implementation of the heuristic creates a schedule and not a fractional schedule. If the scheduling instance has got the PCPSP flag on, an exception is thrown.

Member Function Documentation

void delphos::SlidingTimeWindowHeuristic::SetEmphasis ( const Model::Emphasis & emphasis )

Set the emphasis mode for each resolution of sub-problem.

Parameters

emphasis The emphasis of the optimization. The emphasis can be Model::Emphasis::FEASABILITY, Model::Emphasis::OPTIMALITY or Model::Emphasis::BALANCED.

void delphos::SlidingTimeWindowHeuristic::SetGap ( const float & gap )

virtual

Set the gap of the sub-problems.

Parameters

gap	The desired realtive integer gap of the sub problems.

Reimplemented from delphos::Scheduler.

void delphos::SlidingTimeWindowHeuristic::SetSense ( const Model::OptimizationSense & sense )

Set the sense of the optimization model.

Parameters

sense The sense of the optimization. The sense can be Model::OptimizationSense::MINIMIZATION or Model::OptimizationSense::MAXIMIZATION.

void delphos::SlidingTimeWindowHeuristic::SetSupPBTimeLimit ( const double & tlimit )

Set the sub problem time limit.

Parameters

tlimit The sub problem time limit

void delphos::SlidingTimeWindowHeuristic::SetVerbose ( const string & path )

Set the verbose mode on and set the path of the log file.

Parameters

path	The path of teh log file.

The documentation for this class was generated from the following files:

/home/gmorales/dev/MineLink/BlockScheduling/core/trunk/solvers/scheduling/heuristics/swheuristics.h
/home/gmorales/dev/MineLink/BlockScheduling/core/trunk/solvers/scheduling/heuristics/swheuristics.cpp
