Class that defines heuristics that use expected times for blocks, computed by Bienstock Zuckerberg algorithm (BZ). More...

#include <etheuristics.h>

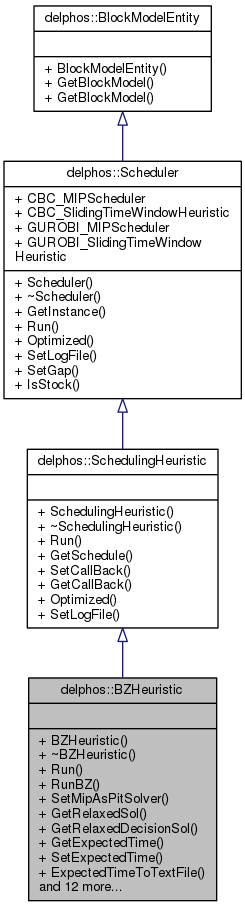

Inheritance diagram for delphos::BZHeuristic:

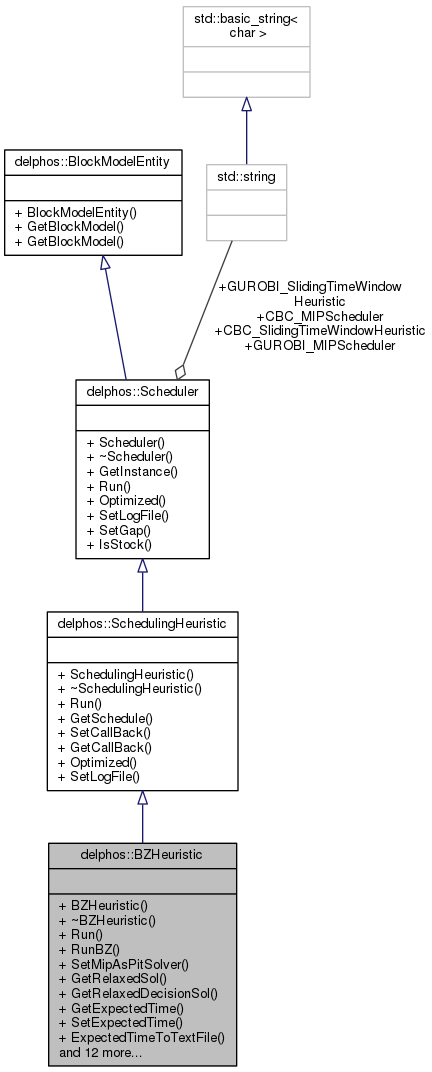

Collaboration diagram for delphos::BZHeuristic:

Public Member Functions
	BZHeuristic (delphos::SchedulingInstance &si, delphos::FinalPitSolver *fps=NULL)
	Defines a BZ heuristic to solve given scheduling instance. More...

virtual	~BZHeuristic ()
	The destructor.

virtual bool	Run ()
	Run the BZ that defines expected times, then the ETInc heuristic.

bool	RunBZ (unsigned int nbitermax=1000000)
	Run the Bienstock Zuckerberg algorithm.

void	SetMipAsPitSolver ()
	use MIP solver for flow model instead of flow algorithm in BZ.

double *	GetRelaxedSol ()
	Returns the relaxed sol encountered by the BZ. RunBZ() method have to be applied before using this method.

double *	GetRelaxedDecisionSol ()
	Returns the relaxed decision sol encountered by the BZ. RunBZ() method have to be applied before using this method.

vector< double >	GetExpectedTime ()
	Returns the expected times. RunBZ() method have to be applied before using this method.

bool	SetExpectedTime (const string &column)
	Save expected times as a block model attribute with given name. More...

bool	ExpectedTimeToTextFile (const char *exptime_file) const
	Writes the expected times in given file. More...

bool	RunTopoHeur ()
	Run the modified Topological sort heuristic. RunBZ() method have to be applied before using this method.

void	SetHeurParameters (const unsigned int &windowsize, const float &delta, const unsigned int &step)
	Run the ETInc heuristic. More...

bool	CheckRelaxedSol ()
	Check If the relaxed solution respect the constraints defined in the scheduling instance. RunBZ() method have to be applied before using this method.

bool	RelaxedSolToTextFile (const char relsol_file, const char stocks_file="")
	Writes the relaxed solution in given text files. More...

void	SetGap (const double &gap)
	Set the desired relative integer gap used by solving sub problems of ETInc and ETDelta.

const double	GetGap () const
	Returns the desired gap.

void	SetEmphasis (const Model::Emphasis &emph)
	Set the desired emphasis used by solving sub problems of ETInc and ETDelta. The emphasis can be Model::Emphasis::FEASABILITY, Model::Emphasis::OPTIMALITY or Model::Emphasis::BALANCED.

const Model::Emphasis	GetEmphasis () const
	Returns the desired emphasis.

double	GetRelaxedObj ()
	Returns the relaxed objective encountered by BZ. RunBZ() method have to be applied before using this method.

unsigned int	GetNBIterationsBZ ()
	Returns the number of iterations of BZ algorithm. RunBZ() method have to be applied before using this method.

const map< string, double > &	GetBZDuals ()
	Returns the dual value encountered by BZ for each constraint. RunBZ() method have to be applied before using this method.

bool	IsFeasible ()
	Returns true only if BZ run correctly. RunBZ() method have to be applied before using this method.

Public Member Functions inherited from delphos::SchedulingHeuristic
	SchedulingHeuristic (SchedulingInstance &si)
	Creates a heuristic with given scheduling instance. More...

virtual	~SchedulingHeuristic ()
	The destructor.

const Schedule &	GetSchedule ()
	Returns the result schedule.

void	SetCallBack (delphos::CallBackPtr fp)
	Set a time advance user callback. More...

delphos::CallBackPtr	GetCallBack ()
	Returns the call back if it exists.

const bool	Optimized ()
	Returns true only if the MIP have been succesfully optimized.

void	SetLogFile (const string &name)
	Set the use of the log with given file name. More...

Public Member Functions inherited from delphos::Scheduler
	Scheduler (delphos::SchedulingInstance &si)
	Creates a new scheduler. More...

virtual	~Scheduler ()
	The destructor.

delphos::SchedulingInstance &	GetInstance ()
	Returns the associated scheduling instance.

virtual void	SetGap (const float &gap)
	Sets the desired gap for the optimization. More...

const bool	IsStock ()
	Returns true only if the inner scheduling instance has stoks.

Public Member Functions inherited from delphos::BlockModelEntity
	BlockModelEntity (delphos::BlockModel &bm)
	Creates a new block instance associated to a given block model. More...

delphos::BlockModel &	GetBlockModel ()
	Retrieves the block model to which the entity is associated. More...

const delphos::BlockModel &	GetBlockModel () const
	Retrieves the block model to which the entity is associated. More...

Additional Inherited Members
Static Public Attributes inherited from delphos::Scheduler
static const string	CBC_MIPScheduler =string("CBC_MIPScheduler")
	Name of the CBC MIP scheduler.

static const string	CBC_SlidingTimeWindowHeuristic =string("CBC_SlidingTimeWindowHeuristic")
	Name of the CBC implemtation of the sliding time window heuristic.

static const string	GUROBI_MIPScheduler =string("GUROBI_MIPScheduler")
	Name of the gurobi MIP scheduler.

static const string	GUROBI_SlidingTimeWindowHeuristic =string("GUROBI_SlidingTimeWindowHeuristic")
	Name of the gurobi implemtation of the sliding time window heuristic.

Detailed Description

Class that defines heuristics that use expected times for blocks, computed by Bienstock Zuckerberg algorithm (BZ).

Constructor & Destructor Documentation

delphos::BZHeuristic::BZHeuristic	(	delphos::SchedulingInstance &	si,
		delphos::FinalPitSolver *	fps = `NULL`
	)

Defines a BZ heuristic to solve given scheduling instance.

Parameters

si	The sheduling instance that defines the problem to be solved.
fps	The finalpit solver that will be used by the BZ algorithm. The implementation of the heuristics creates a schedule and not a fractional schedule. If the scheduling instance has got the PCPSP flag on, an exception is thrown.

Member Function Documentation

bool delphos::BZHeuristic::ExpectedTimeToTextFile ( const char * exptime_file ) const

Writes the expected times in given file.

Parameters

exptime_file The name of the file in which the expected times are written.

bool delphos::BZHeuristic::RelaxedSolToTextFile	(	const char *	relsol_file,
		const char *	stocks_file = `""`
	)

Writes the relaxed solution in given text files.

Parameters

relsol_file	The file in which the relaxed solution for the blocks is written.
stocks_file	The file in which the relaxed solution for the stocks is written. RunBZ() method have to be applied before using this method.

bool delphos::BZHeuristic::SetExpectedTime ( const string & column )

Save expected times as a block model attribute with given name.

Parameters

column The column attribute name in which the expected times will be saved.

void delphos::BZHeuristic::SetHeurParameters	(	const unsigned int &	windowsize,
		const float &	delta,
		const unsigned int &	step
	)

Run the ETInc heuristic.

Parameters

windowsize	The window size of the ETInc heuristic
delta	The delta used to the expected time to select the blocks.
step	The step of the ETInc.
sched_name	The scheduler name to be used to solve the sub problems. RunBZ() method have to be applied before using this method. ETinc heuristic is a rolling time type heuristic. It uses esperate times to select which blocks will be selected to be scheduled for the current window. A block is selected for the current time window if its esperate time is inferior or equal to delta + upper bound of current time window. Default values for the window size is 1 period, default value for delta is 0.5, default step is 1 period. Set the heuristics parameters
windowsize	The window size.
delta	The delta value.
step	The step.

The documentation for this class was generated from the following files:

/home/gmorales/dev/MineLink/BlockScheduling/core/trunk/solvers/scheduling/heuristics/private_heuristics/etheuristics.h
/home/gmorales/dev/MineLink/BlockScheduling/core/trunk/solvers/scheduling/heuristics/private_heuristics/etheuristics.cpp
